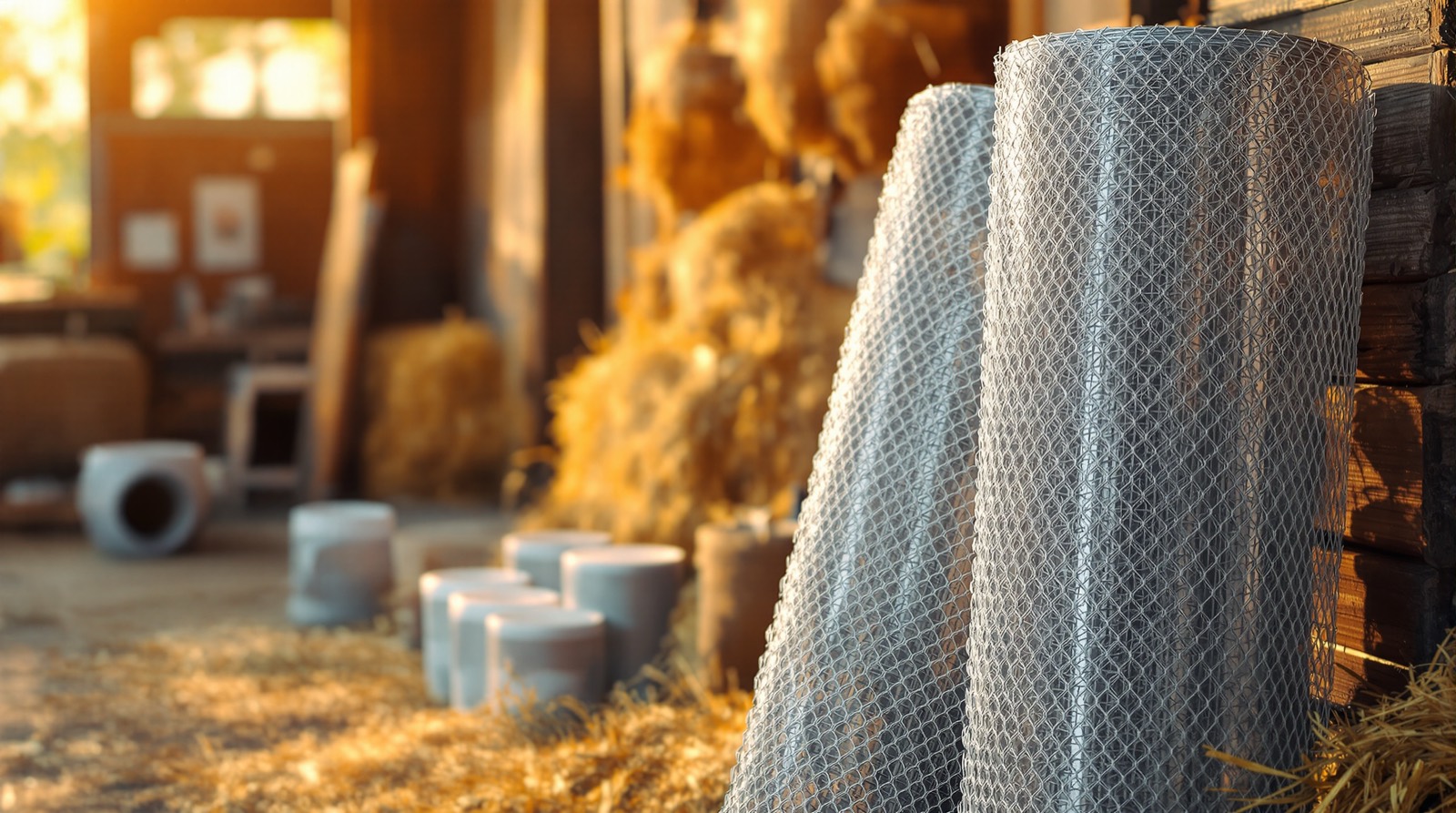

Hexagonal Wire Netting (Chicken/Rabbit/Poultry Wire) is made of low carbon Iron Wire, the mesh is firm in structure and has flat surface. It is extensively used in INDUSTRIAL AND AGRICULTURAL CONSTRUCTUONS AS REINFORCEMNET AND FENCING. It is also used as Fence for Poultry Cage, Fishing, Garden and Children playground, etc.
Assortments Available:
- Electro Galvanized before Weaving
- Electro Galvanized After Weaving
- Hot Dipped Galvanized before Weaving
- Hot Dipped Galvanized after Weaving
- PVC Coated Before or After Weaving
- Stainless Steel Wire
- Galvanized Drawn Iron Wire
|
 |
|
| Galvanized hexagonal wire netting |
mesh |
Min. Gal.v.
G/SQ.M |
Width
|
Wire Gauge (Diameter)
BWG |
Inch
|
mm |
Tolerance(mm) |
| 3/8" |
10mm |
±1.0 |
0.7mm - 145 |
2' - 1M |
27, 26, 25, 24, 23 |
| 1/2" |
13mm |
±1.5 |
0.7mm - 95 |
2' - 2M |
25, 24, 23, 22, 21 |
| 5/8" |
16mm |
±2.0 |
0.7mm - 70 |
2' - 2M |
27, 26, 25, 24, 23, 22 |
| 3/4" |
20mm |
±3.0 |
0.7mm - 55 |
2' - 2M |
25, 24, 23, 22, 21, 20, 19 |
| 1" |
25mm |
±3.0 |
0.9mm - 55 |
1' - 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" |
31mm |
±4.0 |
0.9mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
| 1-1/2" |
40mm |
±5.0 |
1.0mm - 45 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
| 2" |
50mm |
±6.0 |
1.2mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
| 2-1/2" |
65mm |
±7.0 |
1.0mm - 30 |
1' - 2M |
21, 20, 19, 18 |
| 3" |
75mm |
±8.0 |
1.4mm - 30 |
2' - 2M |
20, 19, 18, 17 |
| 4" |
100mm |
±8.0 |
1.6mm - 30 |
2' - 2M |
19, 18, 17, 16 |
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting. |
| PVC Coated Hexagonal Wire Netting |
| Mesh |
Wire Gauge (MM) |
Width |
| Inch |
MM |
- |
- |
| 1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
| 3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
| 1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
| 1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
| 1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
| 2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
Five Star also offer other specifications you need |
Note:
The thickness of PVC Coating is usually 0.2-0.4mm, others may arranged as per buyers' request;
Package: Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic) |
|
|
|
|
